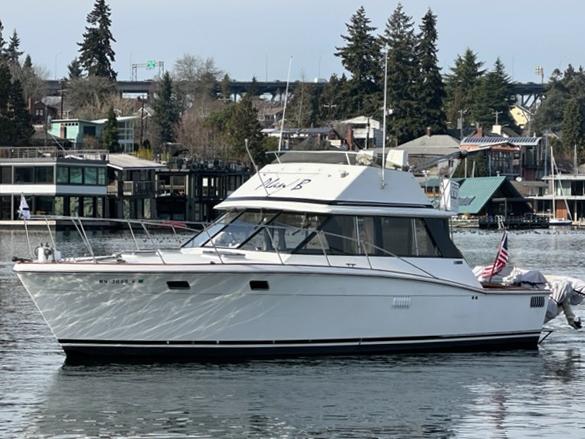

1972 Trojan F-36 Convertible Sedan11m

Kept under cover since new. Has been a Washington boat since new. First owner was a Tacoma Yacht Club member. Boat includes original owners manual, a 1980s survey, and other documents with original owner's name on them. Boat is being sold by the 3rd owner, who has owned the boat since 1996.

Equipped with 454 Crusader engines. Owner was told the boat was repowered in 1989. The boat previously had Chrysler 330s.

Since August 2019, and in part due to the pandemic, the boat has been used much less than usual—gone to Eagle Harbor and Port Madison a few times and mainly used on Lake Washington.

According to the second owner, during the 1989 repower, the port hour indicator was left original, to show hours on the boat itself. Unfortunately, that indicator is malfunctioning. A 2019 boat survey listed it as 3256 hours, yet it shows 3246 hours at the time of this listing over three years later.

During the 1989 repower, the starboard hour indicator was replaced. The 2019 boat survey listed the engines at 1199 hours. At the time of this listing, it shows 2158 hours. Current owner says that seems high. The boat hasn’t been used that much in that time, so while the indicator does increment, its accuracy is in doubt.

HIGHLIGHTS AND UPGRADES

Borg Warner velvet drive transmissions

Ensign digital tach and synch (lower helm)

Fixed CO Engine room fire suppression system. 1 halon handheld and two ABC handheld fire extinguishers

Trim tabs

350 gal fuel in four fuel tanks

Onan Ensign 6500 MCE GenSet (motor rebuilt in 2010)

100 gallon water tank

12 gallon electric water heater

Jabsco electric head with mascerator

15 gal holding tank

Princess 3 burner oven

Isotherm refrigerator

700 watt Microwave

Magic Chef Portable ice maker

Newmar galvanic isolator

McMurray electric windlass. Danforth anchor with 350 ft of ¼”chain. Anchor was re-galvanized in 2021

Two 4D Lead Acid batteries (new 2021)

Rotelco battery charger

Galvonic isolator (installed in 2018)

New electric service panel and 110 vac rewire in 2007

Victron Energy 2000 Inverter (installed in fall 2022)

2 - Meridian 215 AH AGM batteries (installed in 2020)

Garmin 9400xs GPS chartplotter

Fusion 650 Bluetooth/CD/DVD/Am-FM stereo in salon. Kicker speaker system in salon and forward cabin

Dual Marine stereo with 4 speakers (flybridge)

2 VHF radios (flybridge and lower helm)

Toshiba 24” HD LED tv

Forward cabin berth

American sleeper custom full-size hide-a- bed in salon

Galley table and chairs convert to full size bed

Window and sliding glass door draperies (draperies dry cleaned Jan 2023)

New lighting throughout boat in 2009

Roskelly Davit

1992 Achilles center counsel 10’ hard bottom tender with 1995 Johnson 9.9 two stroke motor


MAINTENANCE


Exterior brightwork restoration. Sanded to bare wood. 10 coats varnish. All new transom hardware. 8/2022

Interior wood refinished 9/2021

Rub rail to windows and deck resprayed 7/2022

Exterior windows and frames repainted 7/2022

New bottom paint and zincs 3/2022

New lead acid 4D batteries 8/2022

Engines and transmissions serviced 3/2022.  New impellars installed. Starboad water pump replaced

New exterior vents 5/2019

Generator serviced 3/2022. New impellar installed

New fuel pumps 2/2020

Tender motor tune up 11/2020. Impeller replaced

New Jabsco fresh water pump 10/2019

New shower pump /2018

Port carburetor rebuilt 11/2017

New galley bench seating upholstery in 2017

New distributors, points plugs and condensors 8/2016.

New hot water heater 5/2015

Replaced risers and rebuilt heat exchangers 2015

New alternators 2014

Head piping replaced in 2014

120 VAC rewire and new service panel 2007

New exhaust system 2007

New Isotherm refrigerator/freezer 2009

At some point in the first few years of owning the both the starters were replaced


MORE SPECIFICATIONS PER 2019 SURVEY (less any replacements listed above)


Electronics/Navigation:

Compasses: Aquameter magnetic at each helm station

VHF Radio: Raytheon RAY210VHF, Standard-Horizon Matrix GX2200 AIS

Chart/Sounder: Garmin GPSmap XS

Depth Sounder: Standard Horizon DS30

Video Sounder: Interphase 2020

Cabin/Galley:

Galley Range/Oven: Princess three burner 120VAC electric

Galley Refrigerator/Freezer: Isotherm DC130UEPT 12VDC

Cabin Heat: (2) King built-in space heaters

Stereo: Fusion MS-AV650

Television/DVD: Polaroid 19” LCD

Systems:

Potable Water System: Two cylindrical fiberglass tanks midships, Jabsco 12VDC diaphragm pump

Water Heater: Torrid MV17, 17 gallon AC electric

Head/Sanitation: Jabsco electric head, 15 gallon polyethylene holding tank Type III MSD, deck pump out, Guzzler manual diaphragm discharge pump, Jabsco 12VDC diaphragm pump shower sump pump

Batteries: (2) 4D-12VDC wet cell lead acid, no dates, (1) Group 24-12VDC wet cell lead acid, no date, (2) Meridian M215B-12VDC AGM, no date

Battery Charger: Professional Mariner ProMite 5ampere

Electrical Systems: Both AC and DC systems have been updated

AC: 120 VAC system, 30 ampere shore power inlet, two 30 ampere shore power cords, salon Blue Seas distribution panel, voltmeter, polarity, indicator, two-pole main breaker, branch, breakers, GFCI protected outlets, Newmar GI30, galvanic isolator

AC Generator: Onan Ensign 6500, 6.5KW, 491.4 hours shown

DC: 12 VDC system, battery switches in engine room, helm distribution panel with multiple breakers, two alternators

Fuel System: Four steel tanks, copper and neoprene fuel lines, lever shut-off valves, Siera 18-7945 remote fuel filters

Steering: Wheel, sprocket and chain to cable to linked rod, two stations

Engine Controls: Morse Cable, two stations

Hull and Underwater Gear

Vessel was inspected dockside in water

Propellers: Two

Propeller Shafts: Stainless steel

Spare Propeller Shaft: One

Propeller Shaft Seals: Conventional bronze stuffing boxes

Hull Condition: Good condition where visible with anti-fouling

Trim Tabs: Two, Boat Leveler System

Thru-Hulls: Bronze

Seacocks: Bronze-rubber plug quarter turn valves, and bronze lever ball valves

Strainers: Engine and generator raw water sea strainers with sight in engine room and lazarette

Ground Tackle

Anchor: Danforth 20H

Rode: 350 feet of 1/4” chain

Windlass McMurry, 12 VDC power up and down

Saltwater Washdown: Jabsco pump

Fenders: Four

Mooring Lines: Eight

Tender:

Dinghy: 1992 / Achilles HB100 fiberglass bottom RIB

HIN: ACH00133D292

Registration Number: WN2433RJ

Outboard Motor: Johnson J10EERD, 9.9 HP 2 stroke

Serial No: G03636277

Davit System: Stainless steel transom davit

Safety:

PFD’s: (8) Type II

Throwable Device: LifeSling 2 MOB

Emergency Distress Signals:Yes, flares current until 2021

Fire Extinguishers: (3) ABC-I, (1) BC-1

Fire Suppression: CO2

Sound Devices: Power horn

Navigation Lights: Operational

Oil Placard: Posted, engine room

MARPOL Trash Placard: Posted, galley

Bilge Pumps: Rule1500-12VDC with float switch, Lovette 900 with internal float switch

Engine Room Blower: Yes, operational

Flame Arrestors: Yes, on each carburetor

Swim Ladder: Yes, underside of swim platform

Emergency Plugs: Yes

Gas Vapor Alarm: Xintex S2A
